tmux

MX-01 // MULTIPLEXER

tmux lets you run multiple terminal sessions in a single window with split panes and session persistence.

Configuration

Config lives at ~/.config/tmux/tmux.conf.

Key Settings

Setting	Value
Prefix	`Ctrl` + `Space` (also `Ctrl` + `B`)
Base index	1 (windows and panes)
Mouse	Enabled
Copy mode	Vi keybindings

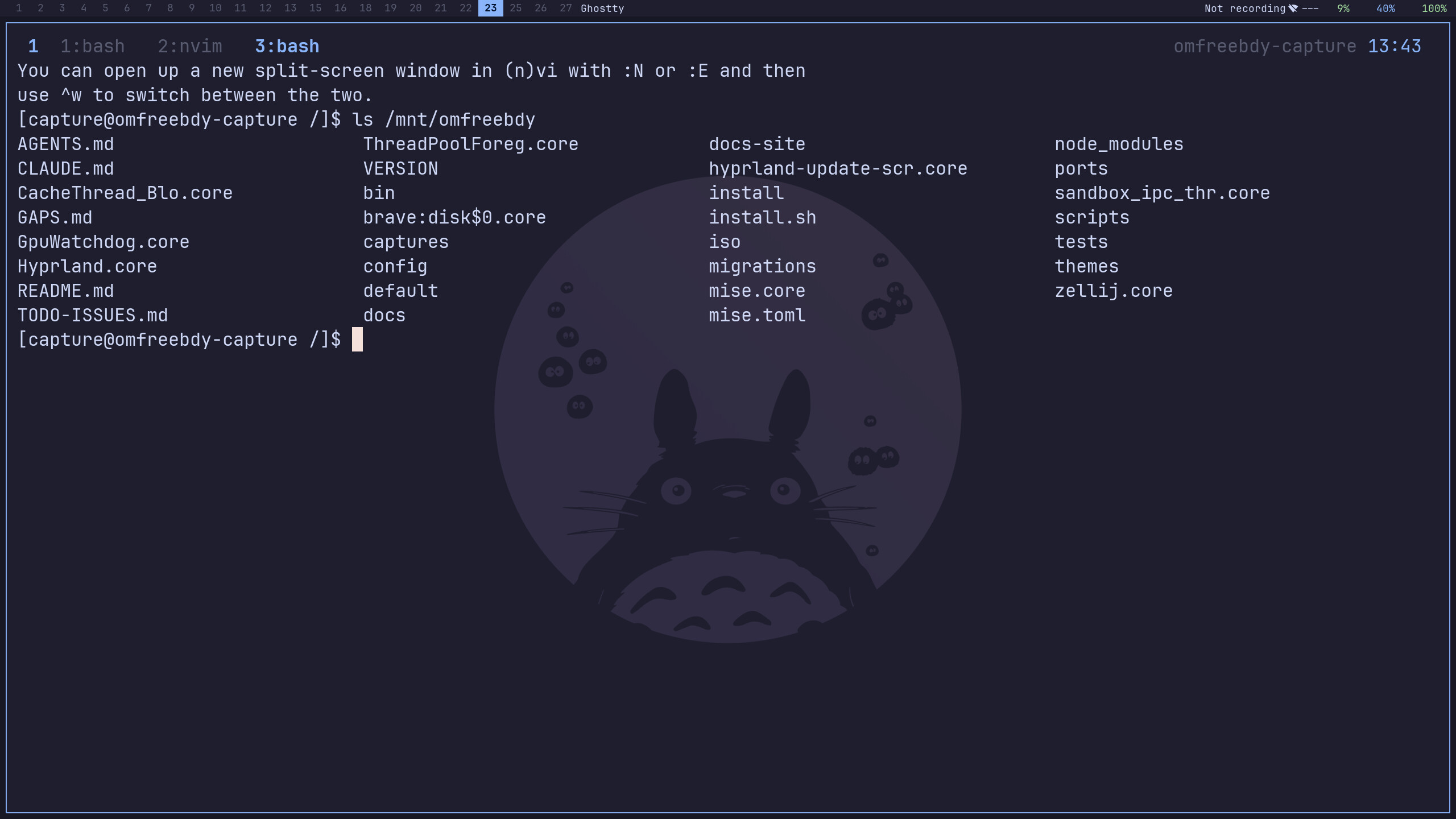

Status bar	Top position, themed
Colors	256 color with RGB overrides

Key Bindings

All prefixed bindings require pressing Ctrl + Space first.

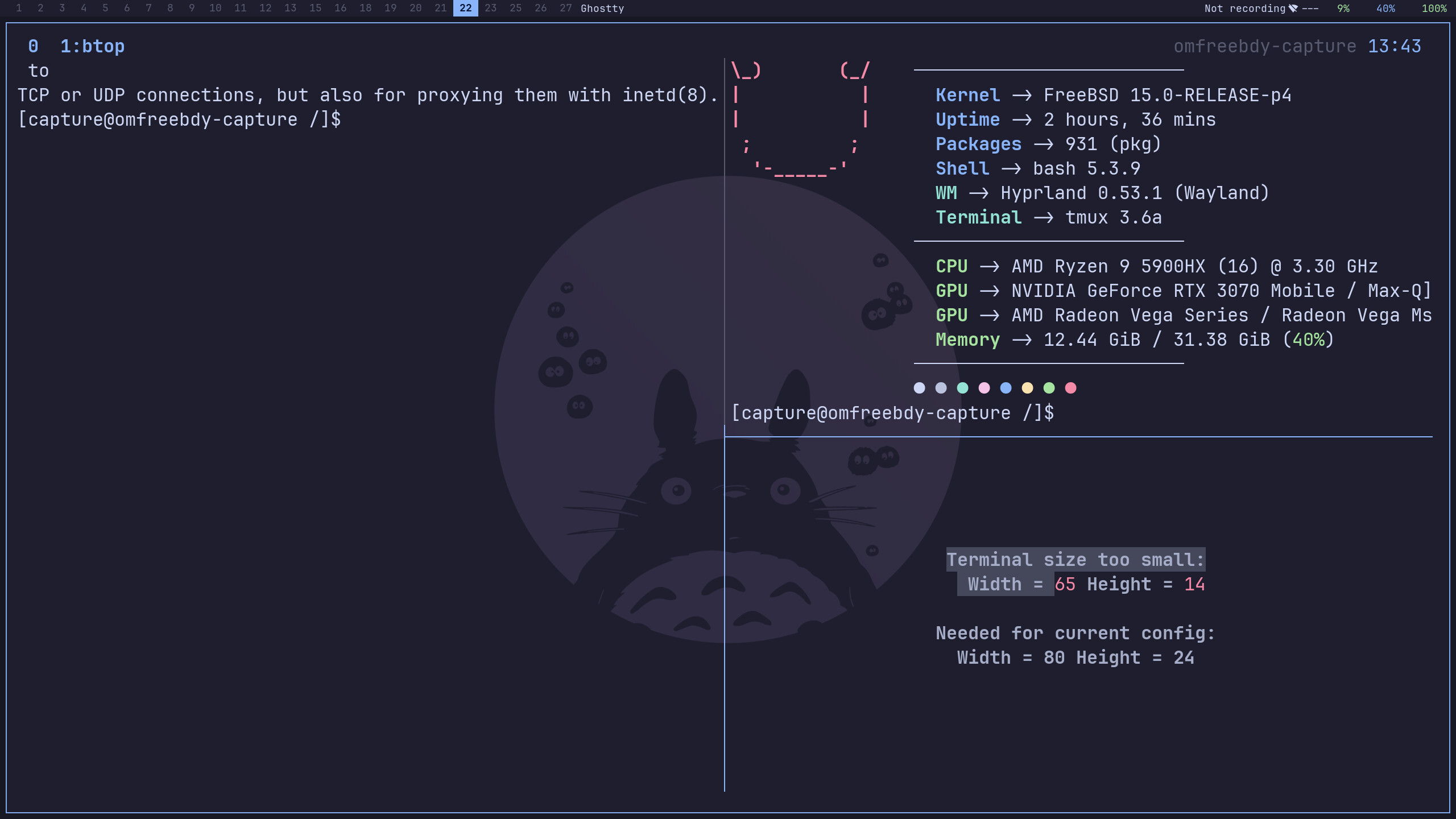

Panes

Shortcut	Action
Prefix + `h`	Split horizontally
Prefix + `v`	Split vertically
`Ctrl` + `Alt` + Arrows	Navigate panes
`Ctrl` + `Alt` + `Shift` + Arrows	Resize panes
Prefix + `x`	Kill pane

Windows

Shortcut	Action
Prefix + `c`	New window
Prefix + `,`	Rename window
`Alt` + `1-9`	Select window
`Alt` + Arrows	Navigate windows

Sessions

Shortcut	Action
Prefix + `C`	New session
Prefix + `R`	Rename session
`Alt` + `Up/Down`	Switch sessions

Copy Mode

Enter copy mode with Prefix + [, then use Vi keys:

Key	Action
`v`	Begin selection
`y`	Copy selection

Dev Layouts

Preconfigured tmux session layouts for development:

Command	Layout	Description
`tdl [name] [dir]`	Editor + terminal	nvim left (60%), terminal right
`tdlm [name] [dir]`	Main dev	nvim top-left, terminal bottom-left, server right
`tsl [name] [dir]`	Swarm	4 equal panes

tdl myproject ~/code/myproject    # editor + terminal
tdlm api ~/code/api              # editor + terminal + server
tsl workers ~/code/workers        # 4 panes for parallel work

If a session with that name already exists, the command reattaches to it.

Customization

Edit ~/.config/tmux/tmux.conf. The config uses Prefix + r to reload. Theme colors are managed by theme-set — switching themes updates tmux live.

The bash alias t attaches to an existing session or creates a new one:

t  # attach or new session
